We redesigned the electric bike
from the road up.
Eeyo 1
Gogoro Smartwheel ™. Full carbon frame and fork. Alloy seatpost, handlebars and rims. Gates Carbon Drive™ belt.

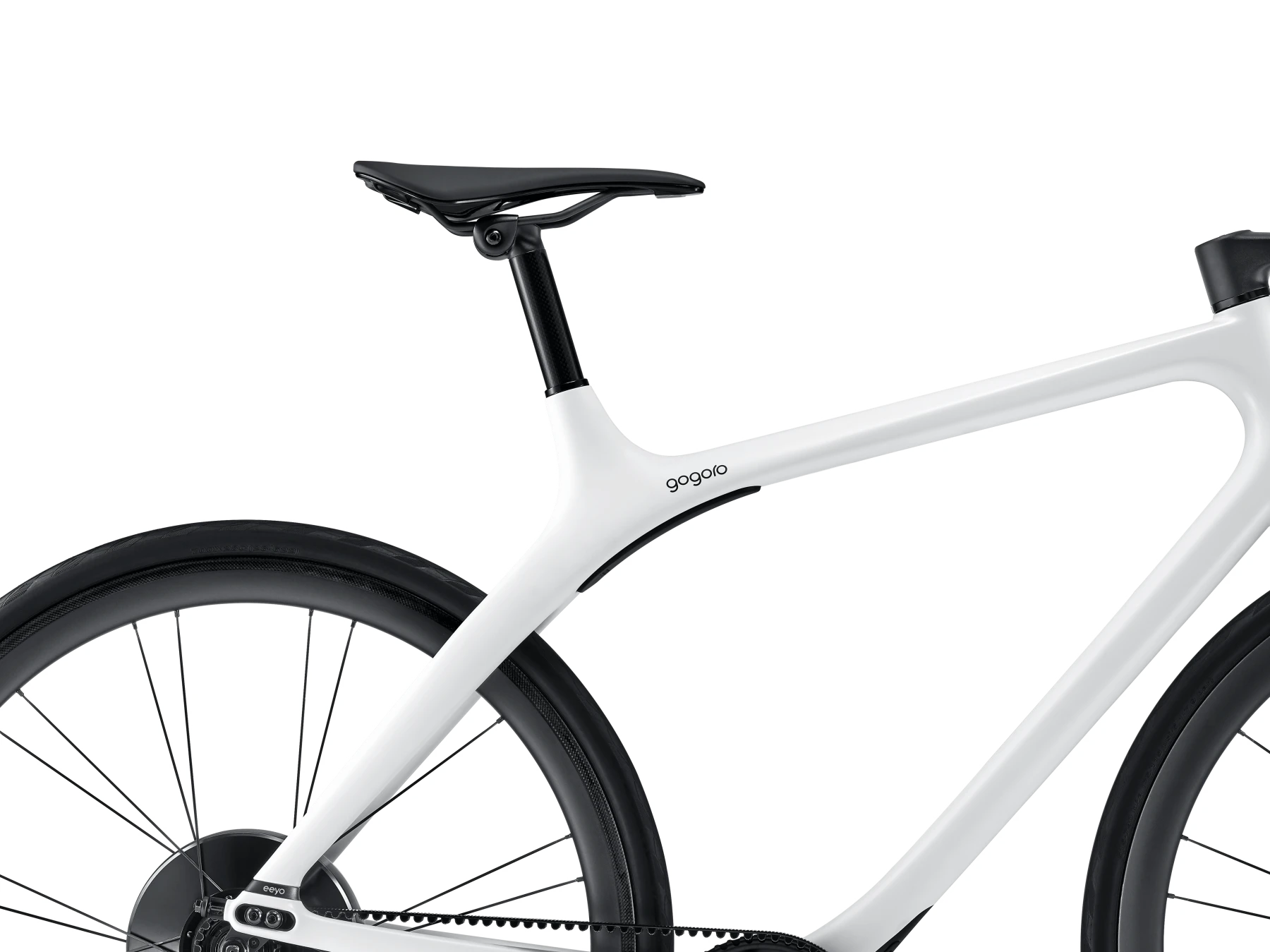

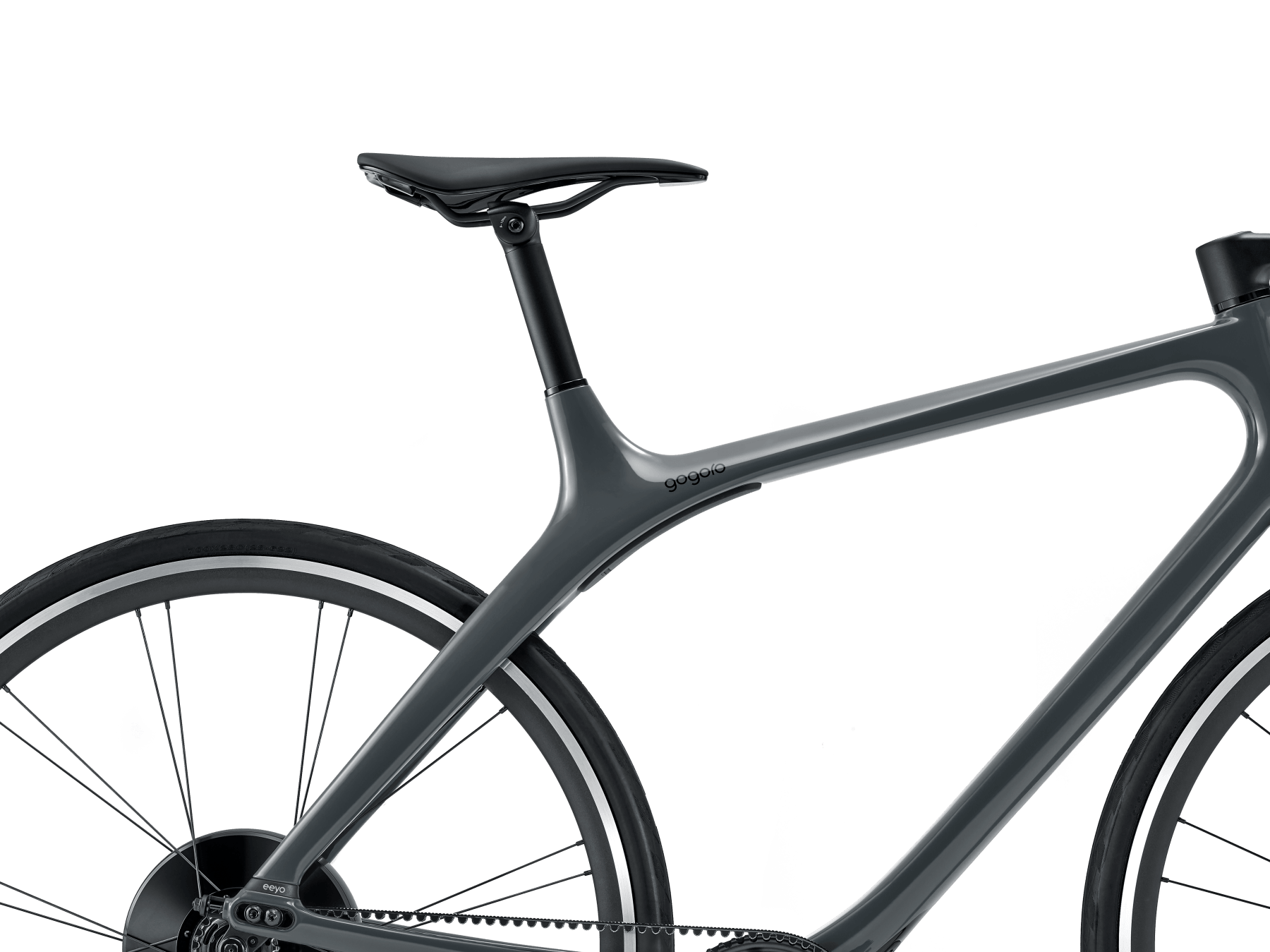

Frame
Weight
11.8 kg

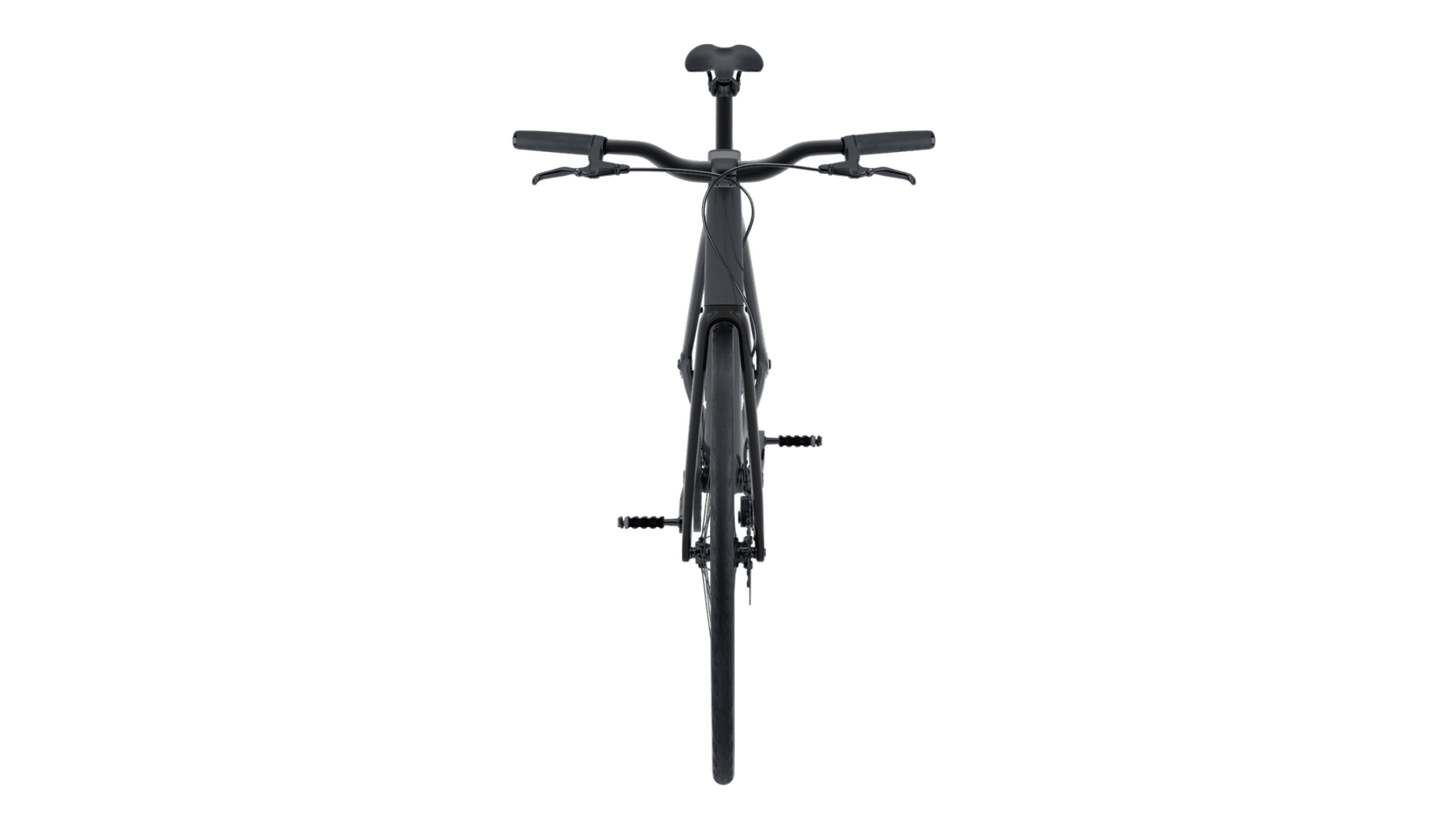

Colours

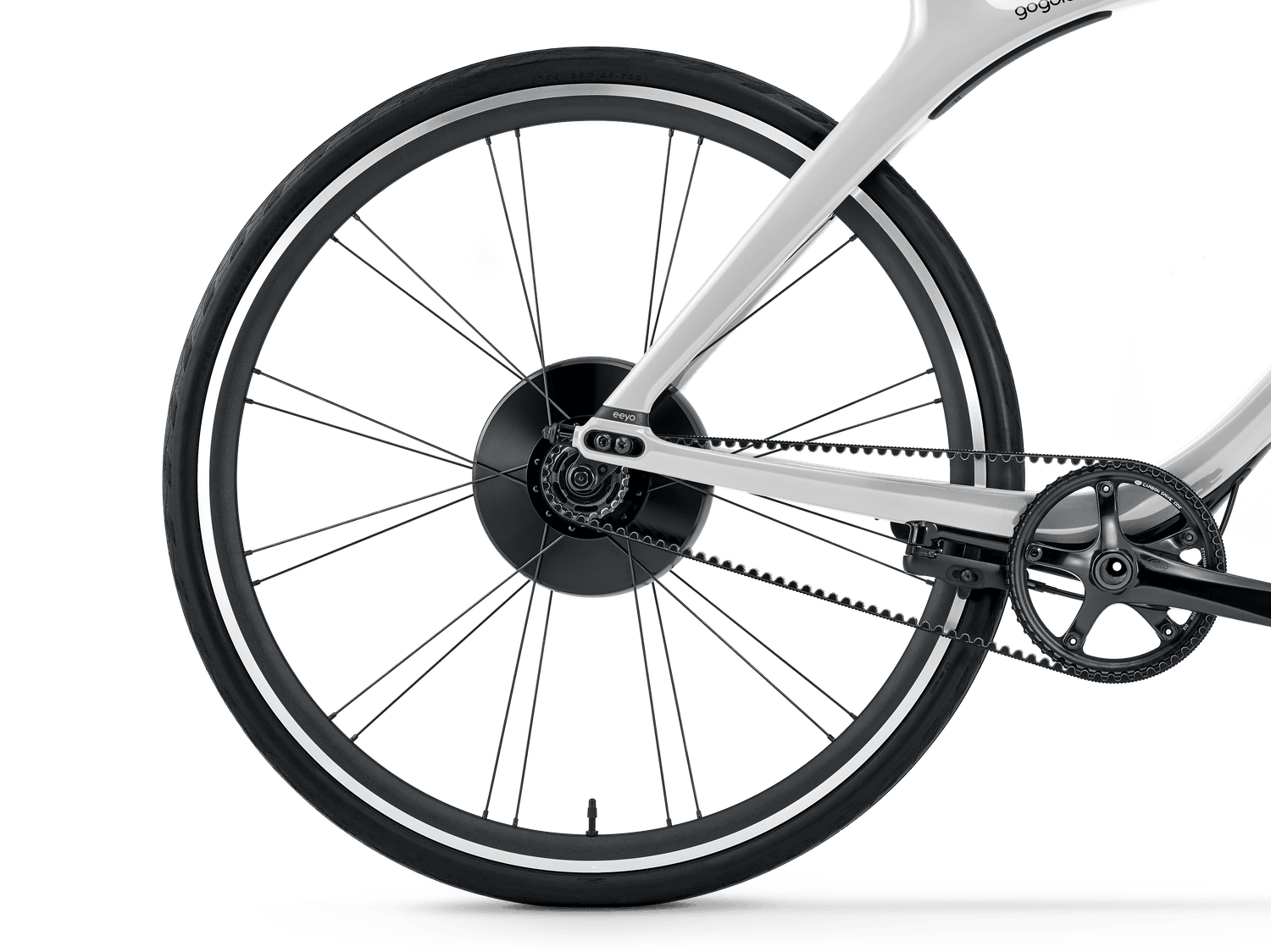

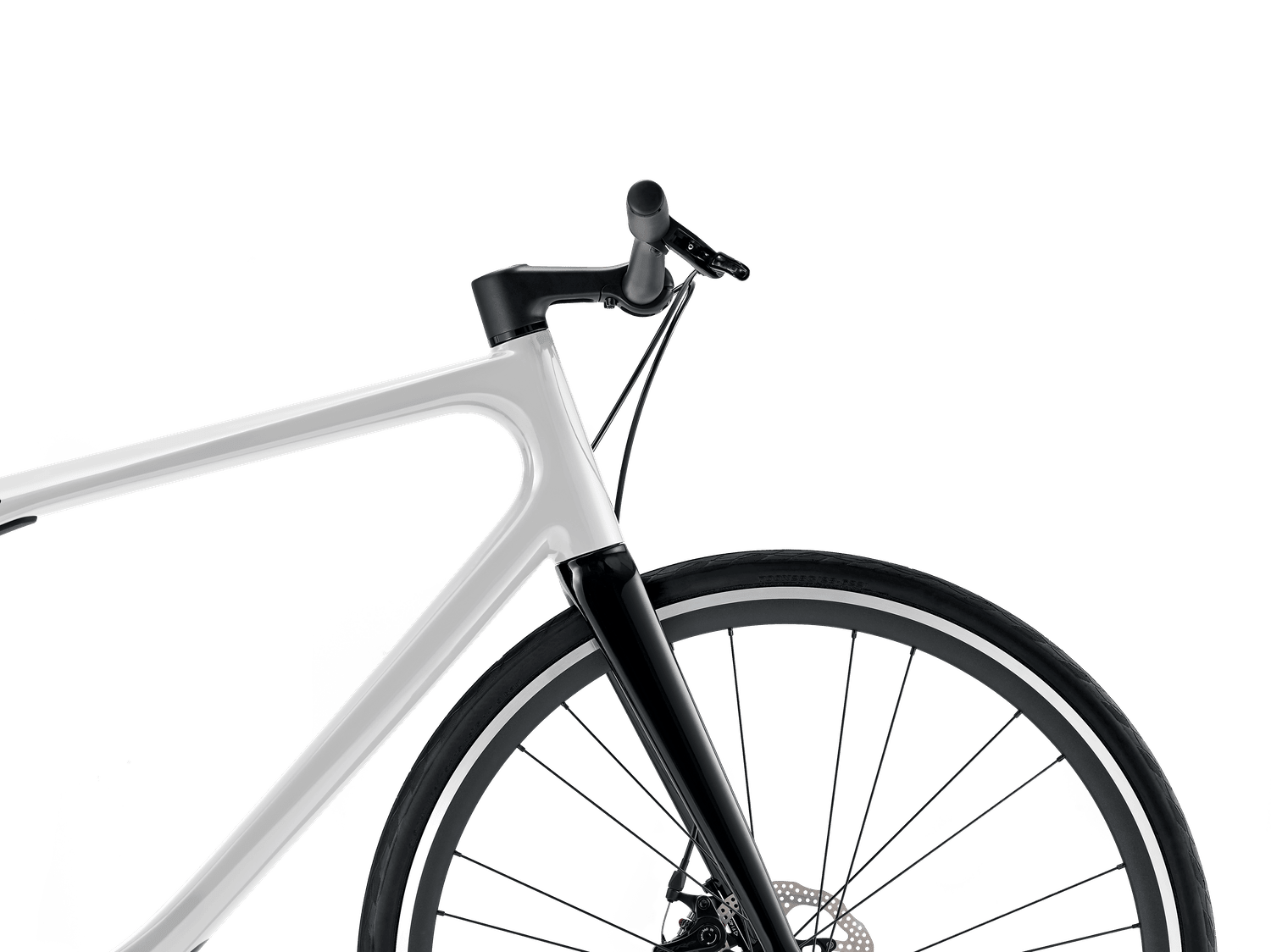

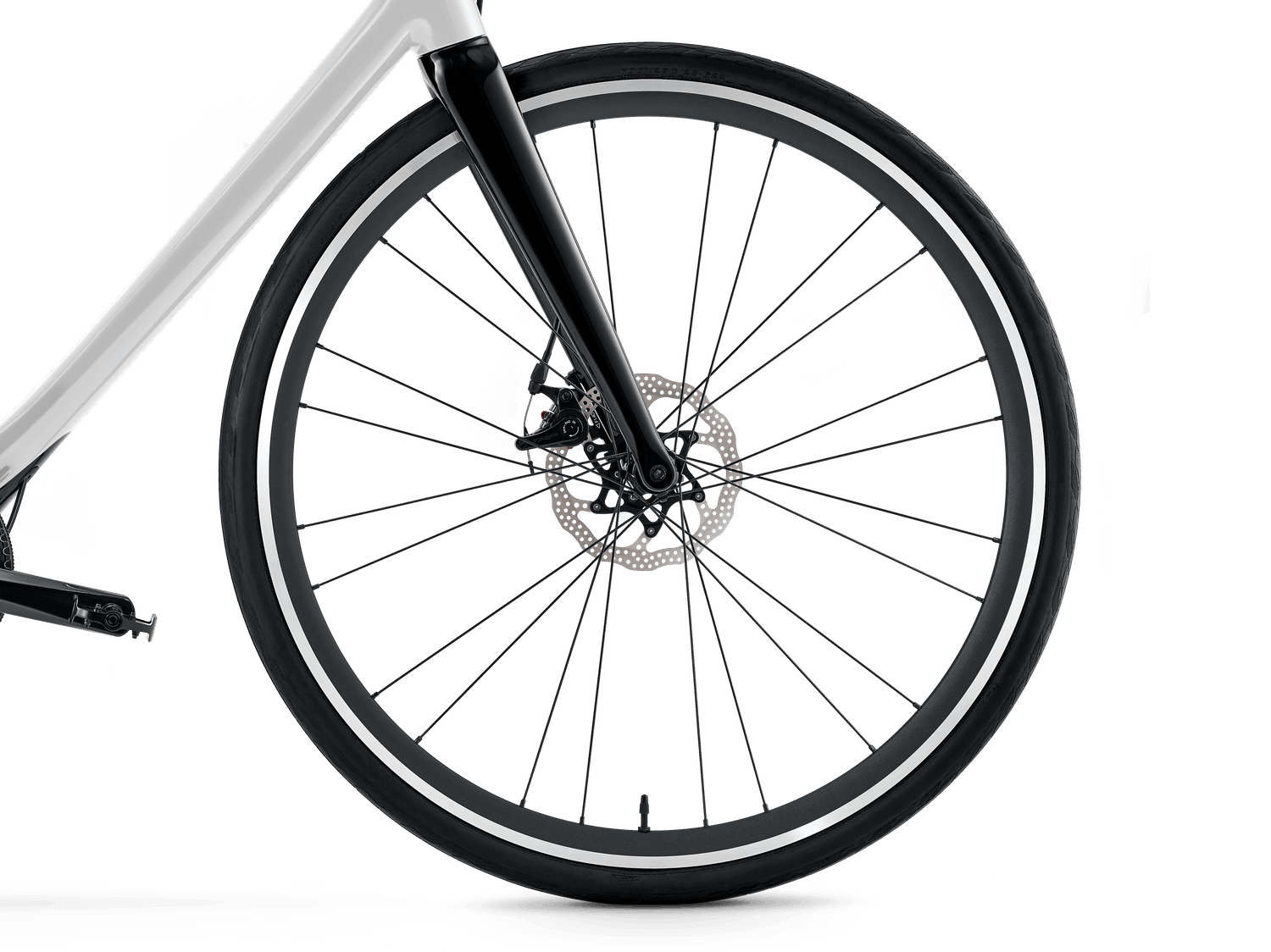

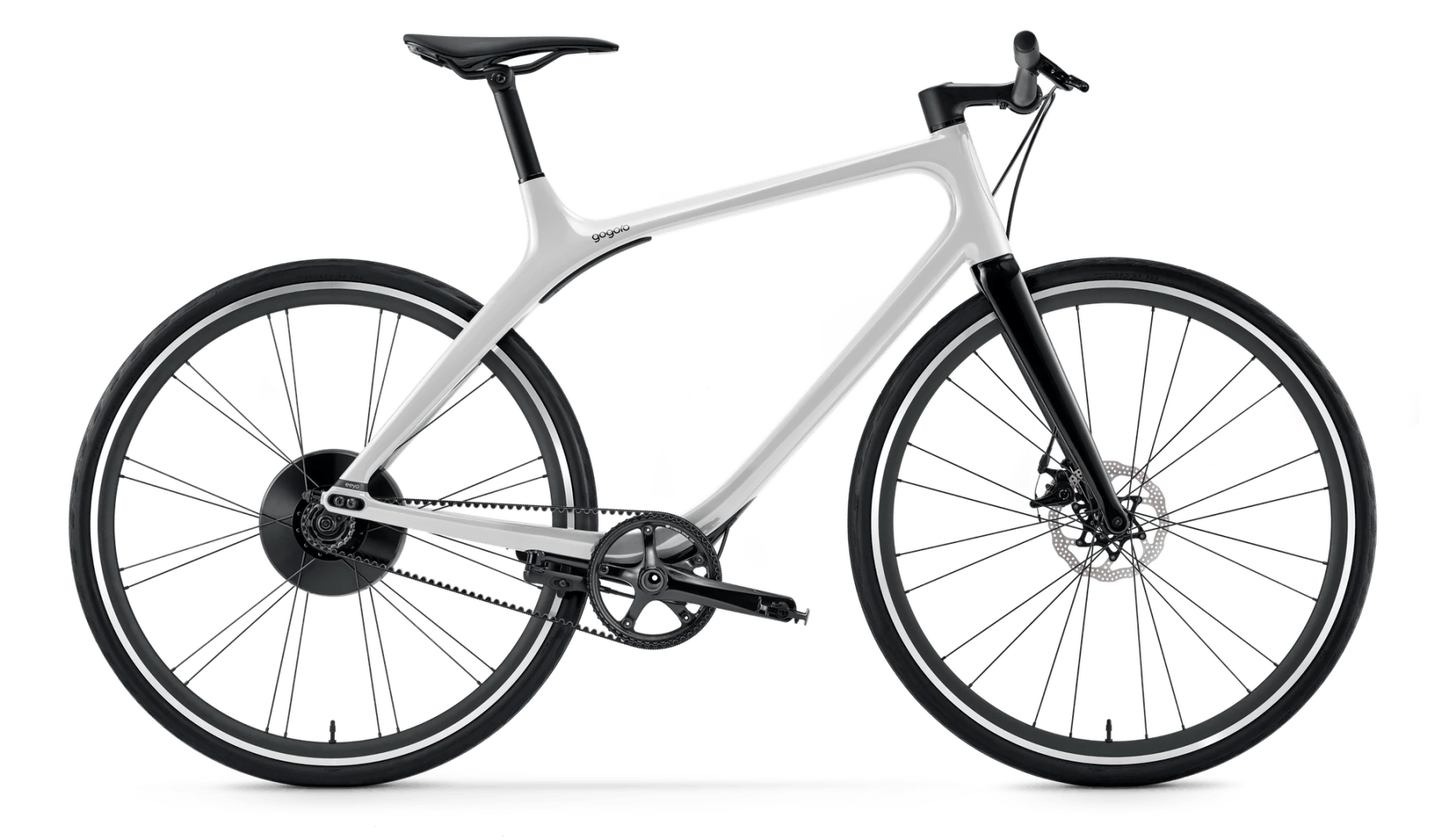

Arctic White, Gloss Finish

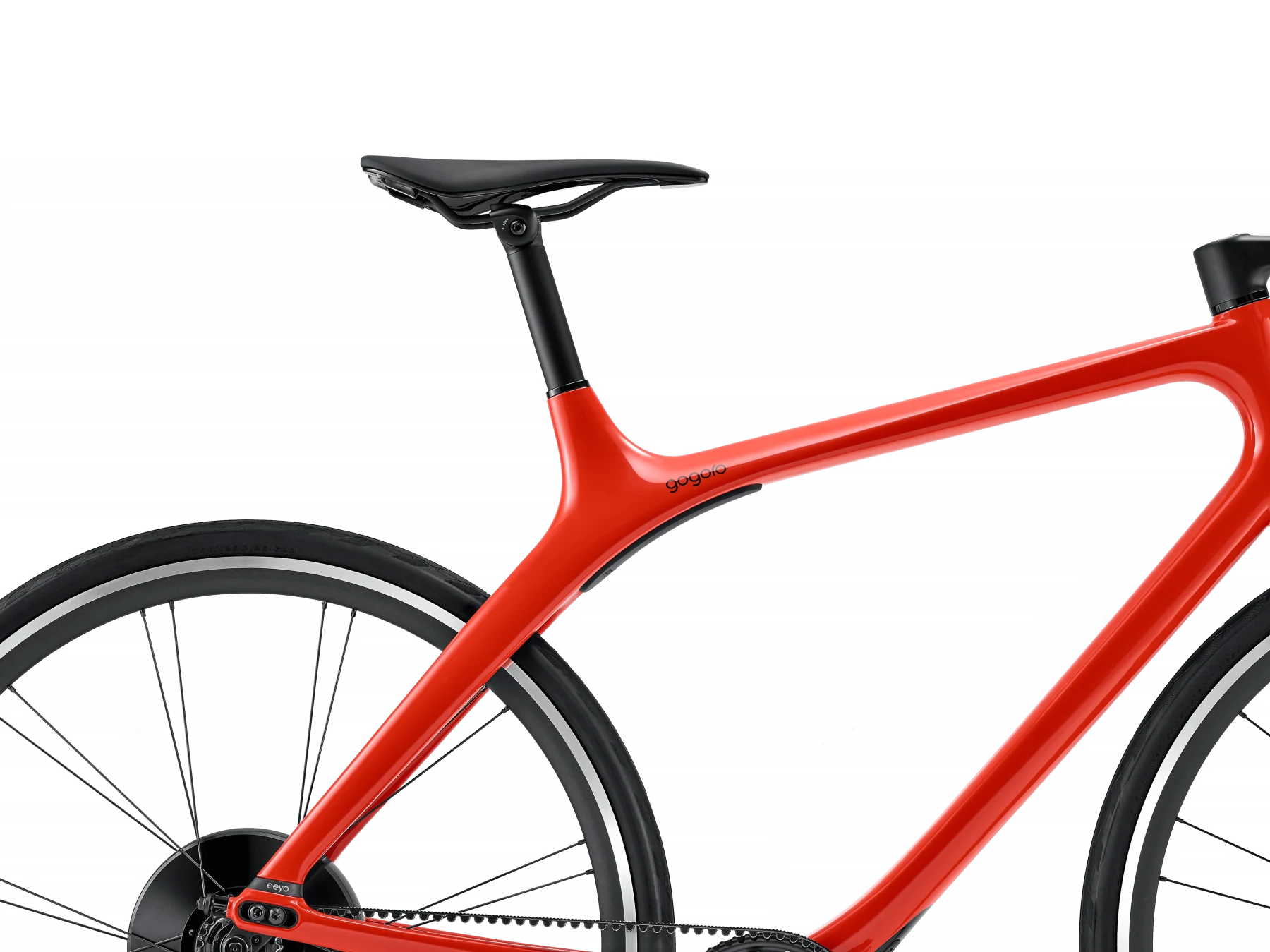

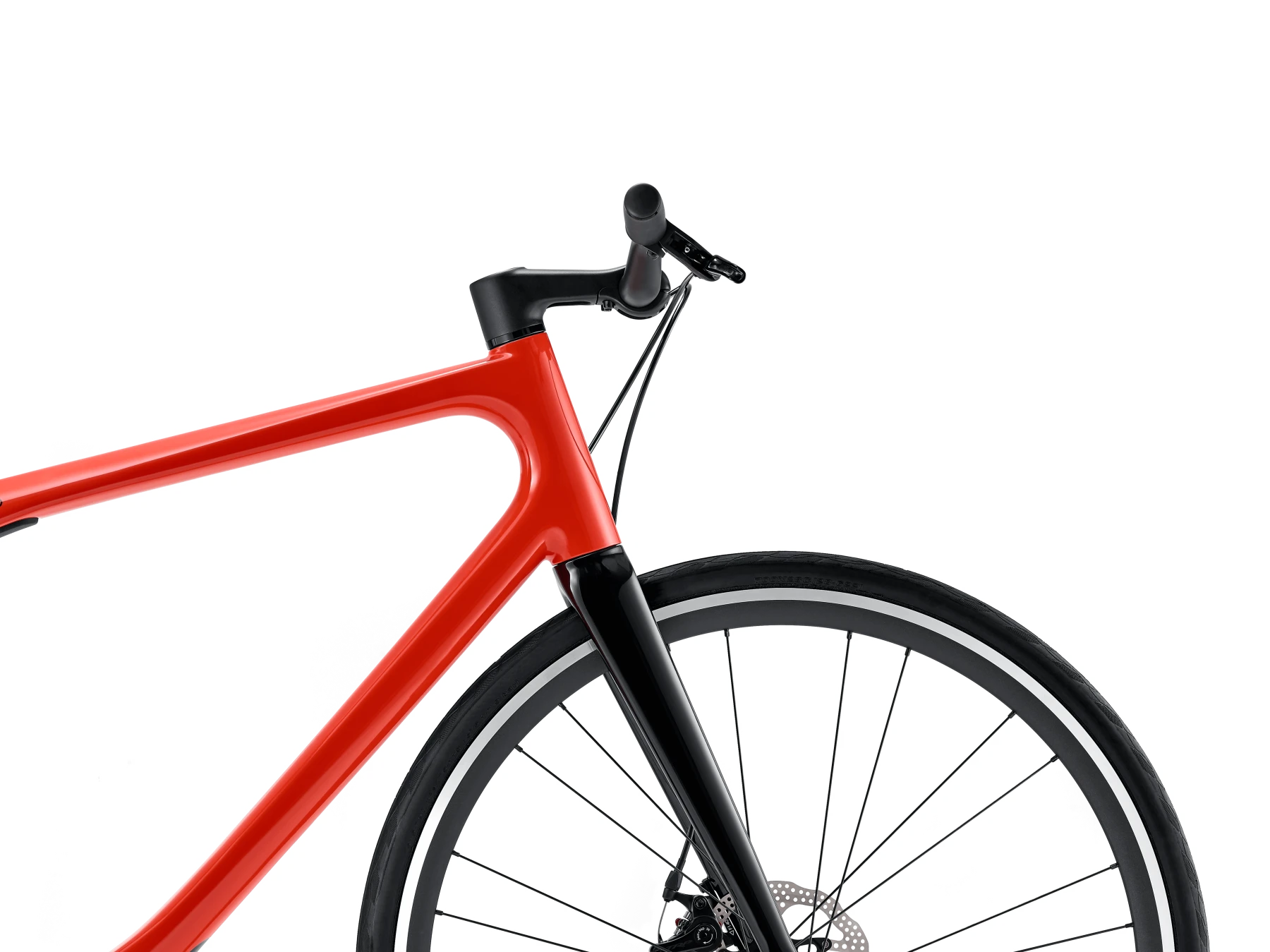

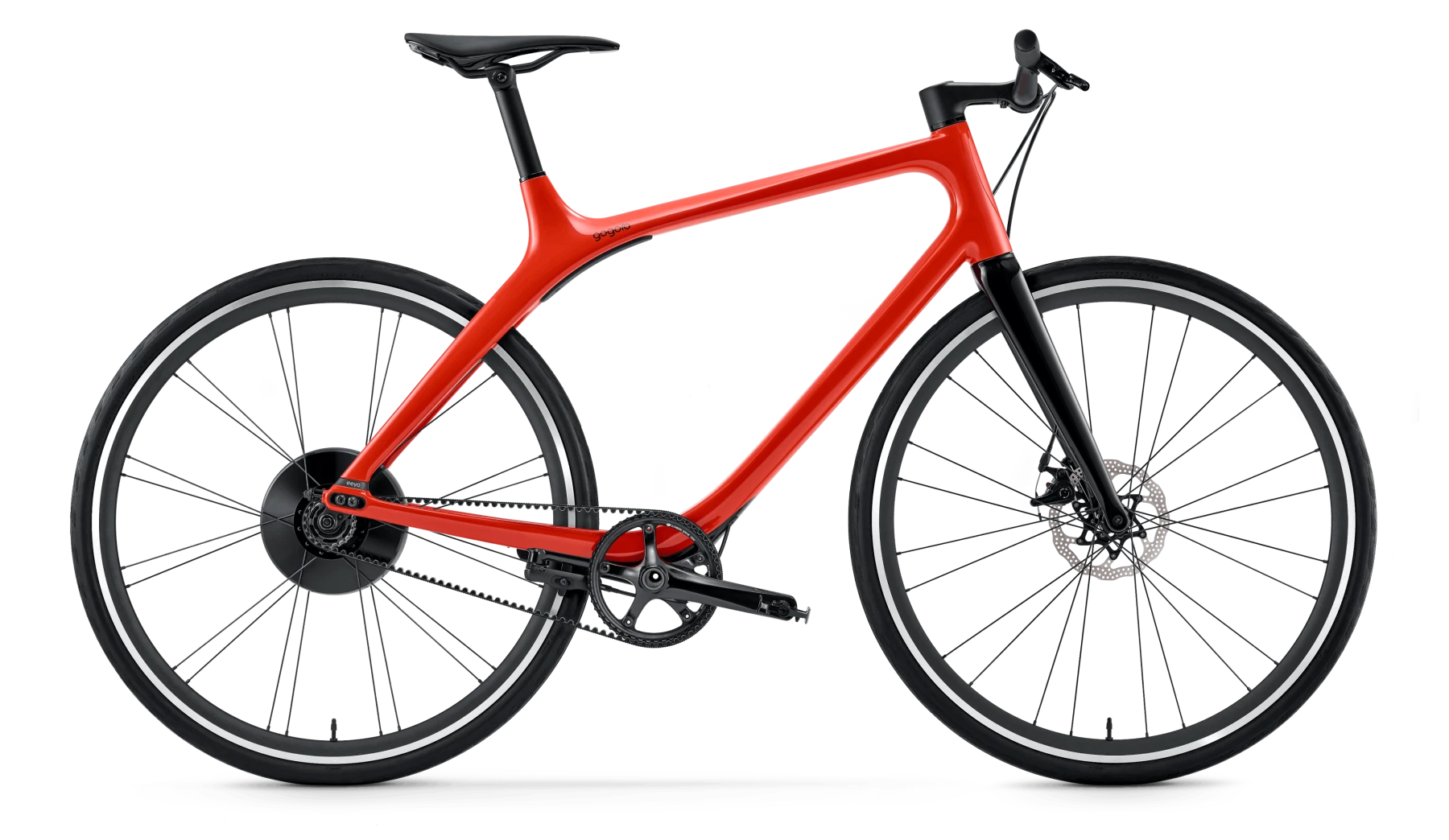

Magma Orange, Gloss Finish

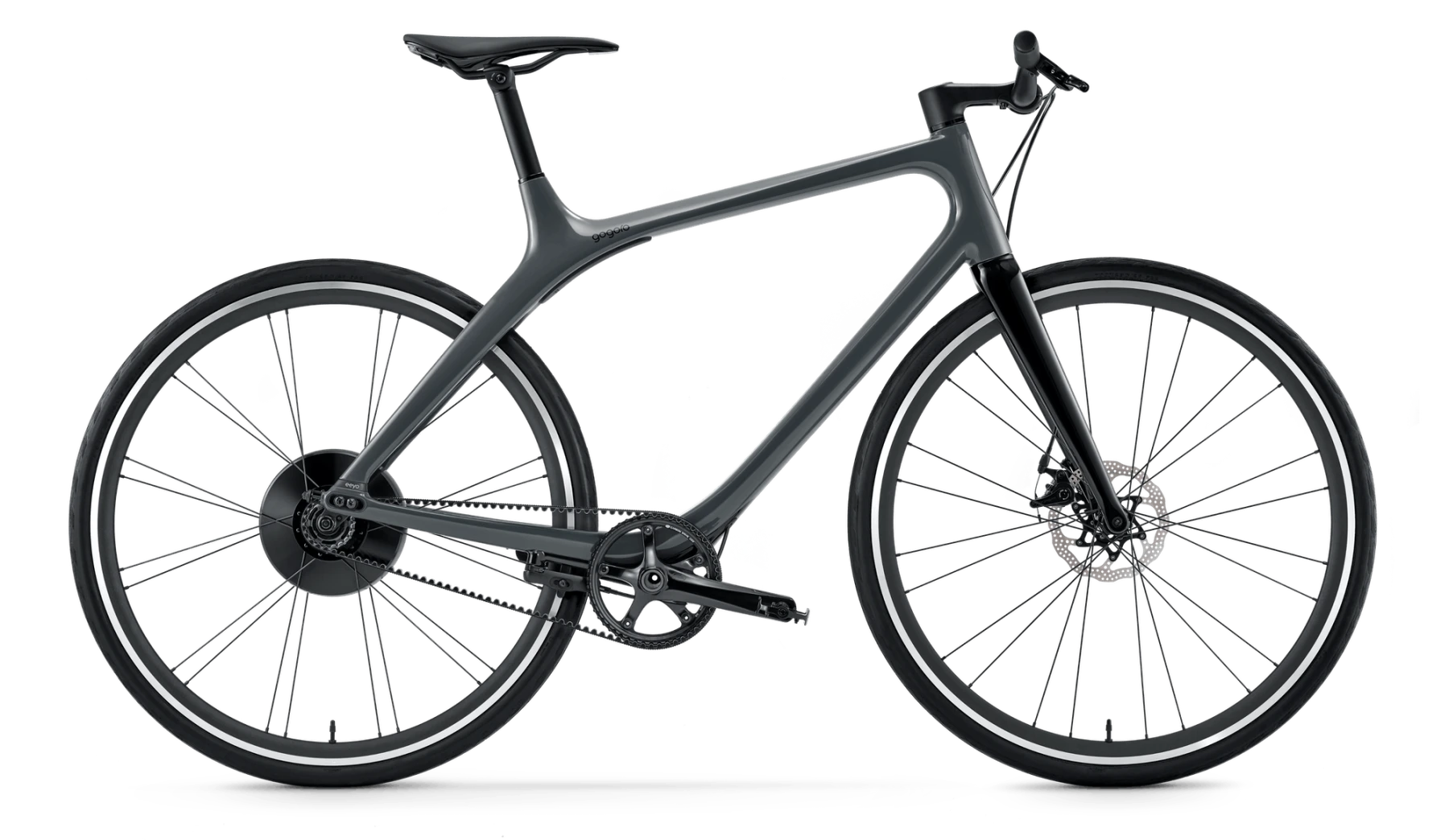

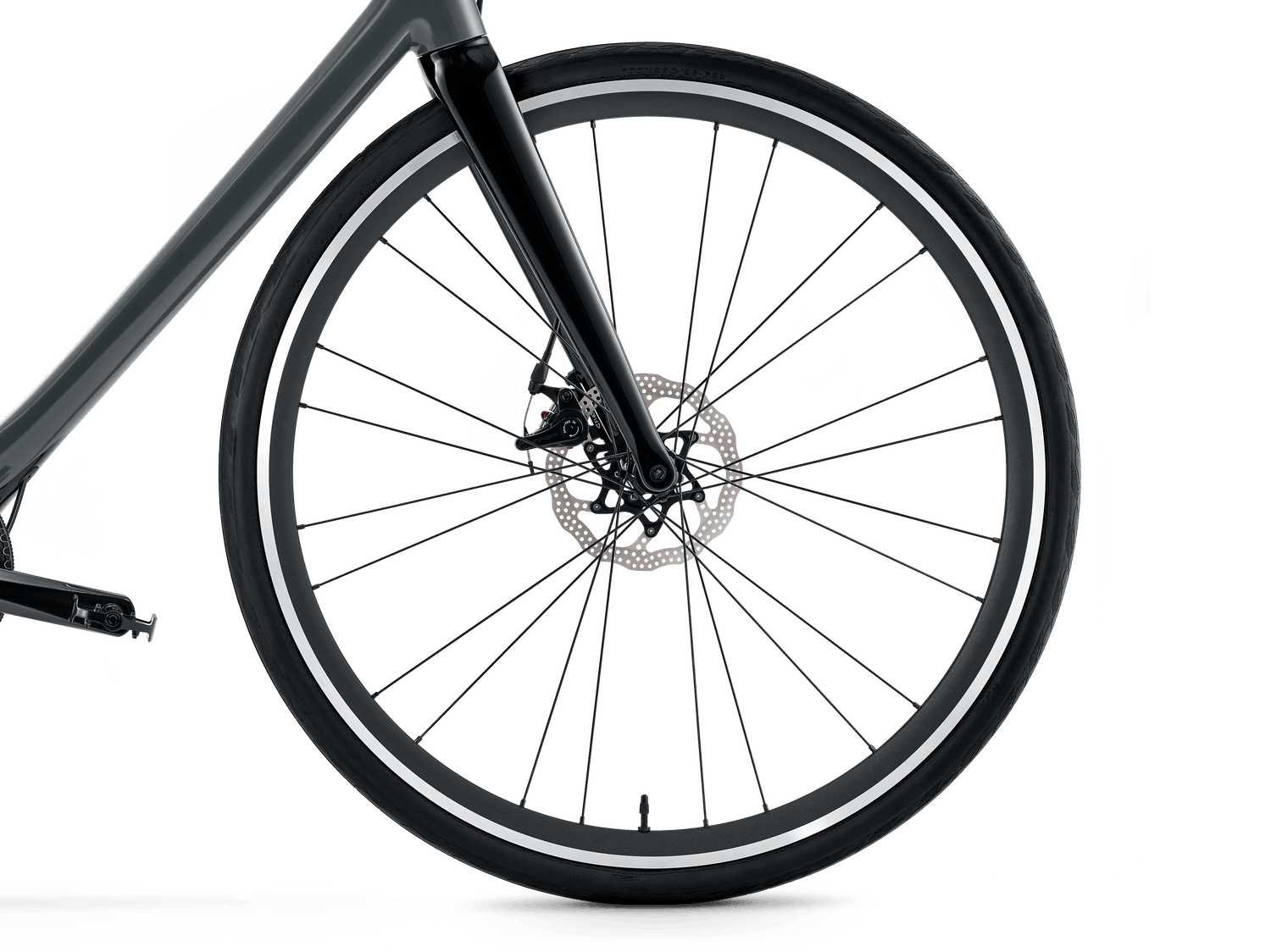

Graphite Grey, Gloss Finish

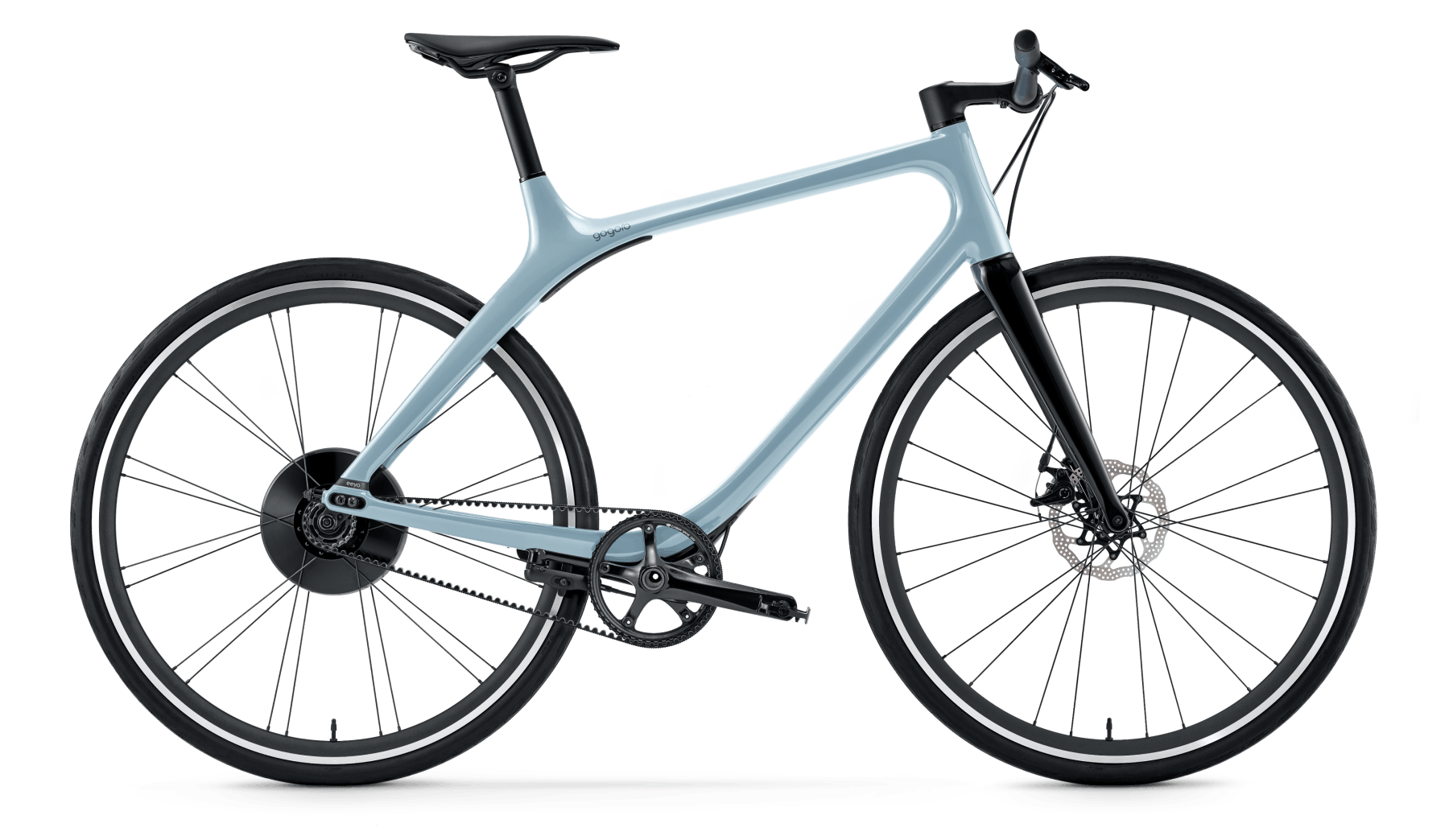

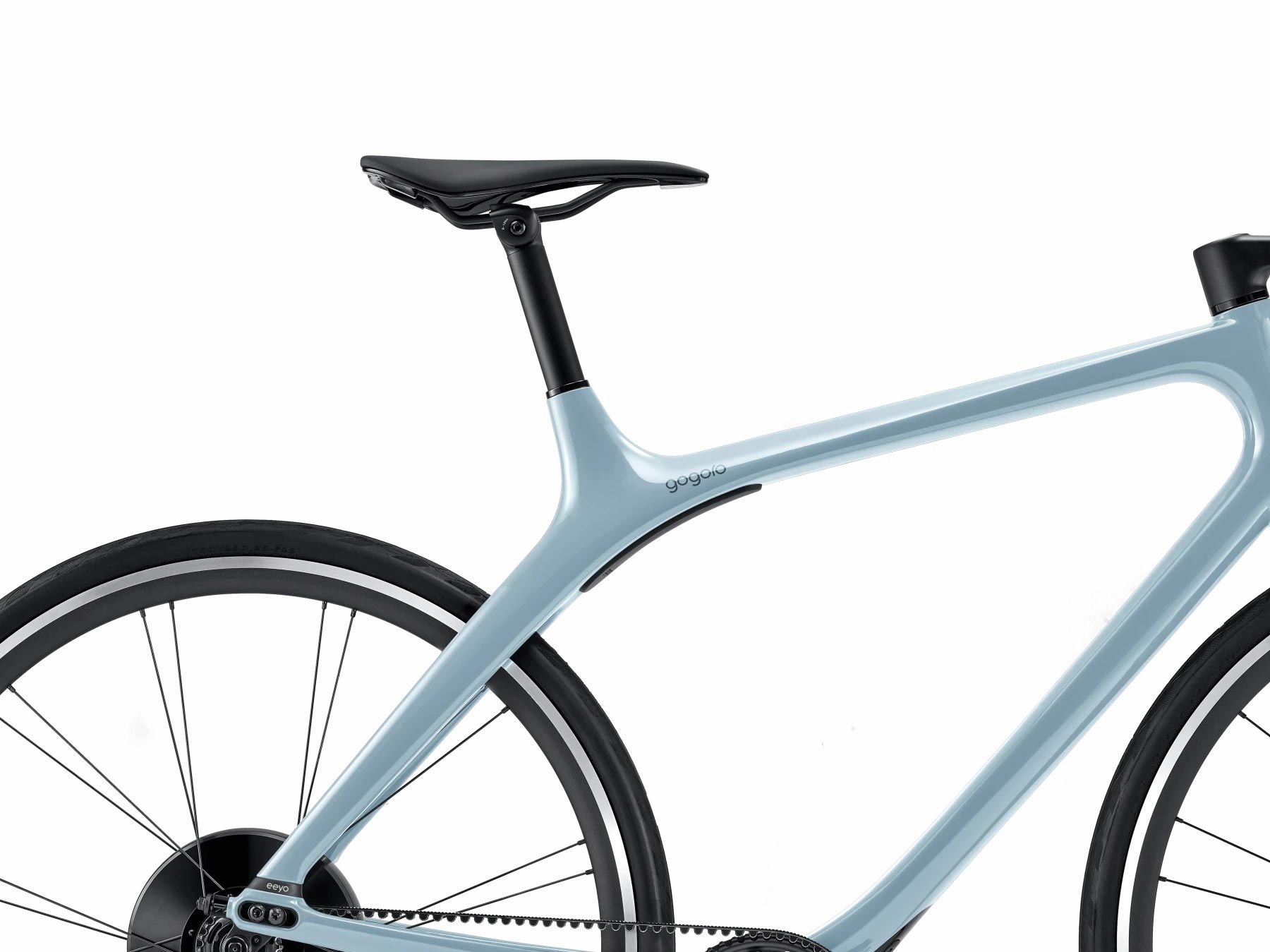

Cloud Blue, Gloss Finish
Components
Seat Post
Alloy, 5 Custom Sizes
Handlebars
Alloy
Wheels
700c Alloy Rims, 30mm Dish, 24 Spoke
Charger
Charger
Front Hub
12mm Through Axle, Sealed Bearings
Rear Hub
Gogoro Eeyo Smartwheel
Tires
MAXXIS 700 X 28C
Gear Ratio
50 / 20
Transmission
Single Speed
Saddle
Ergonomic Sport Design, Titanium Rails
Front Brakes
TRP Disk
Rear Brakes
Tektro V-Clip; Forged Aluminium

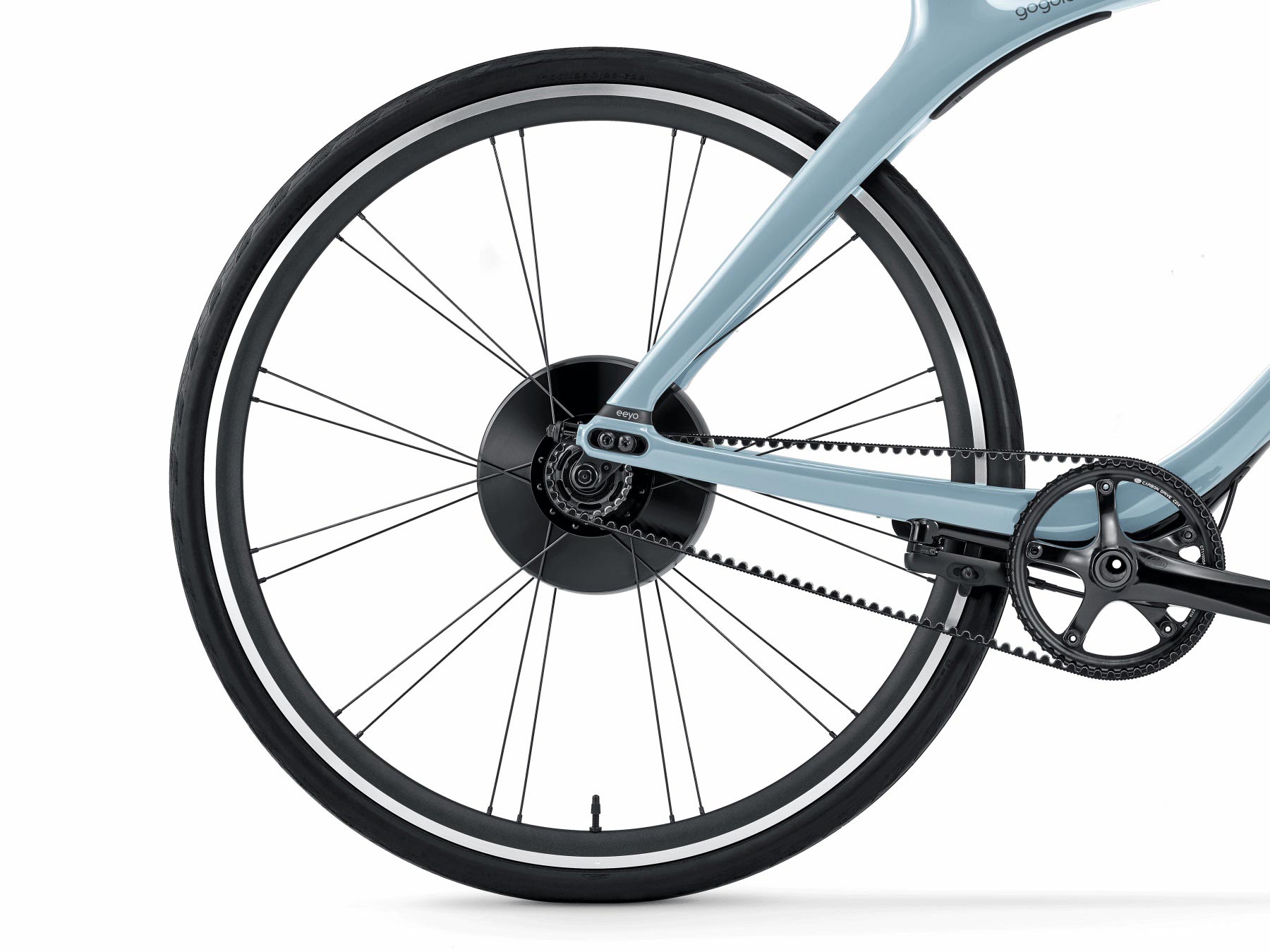

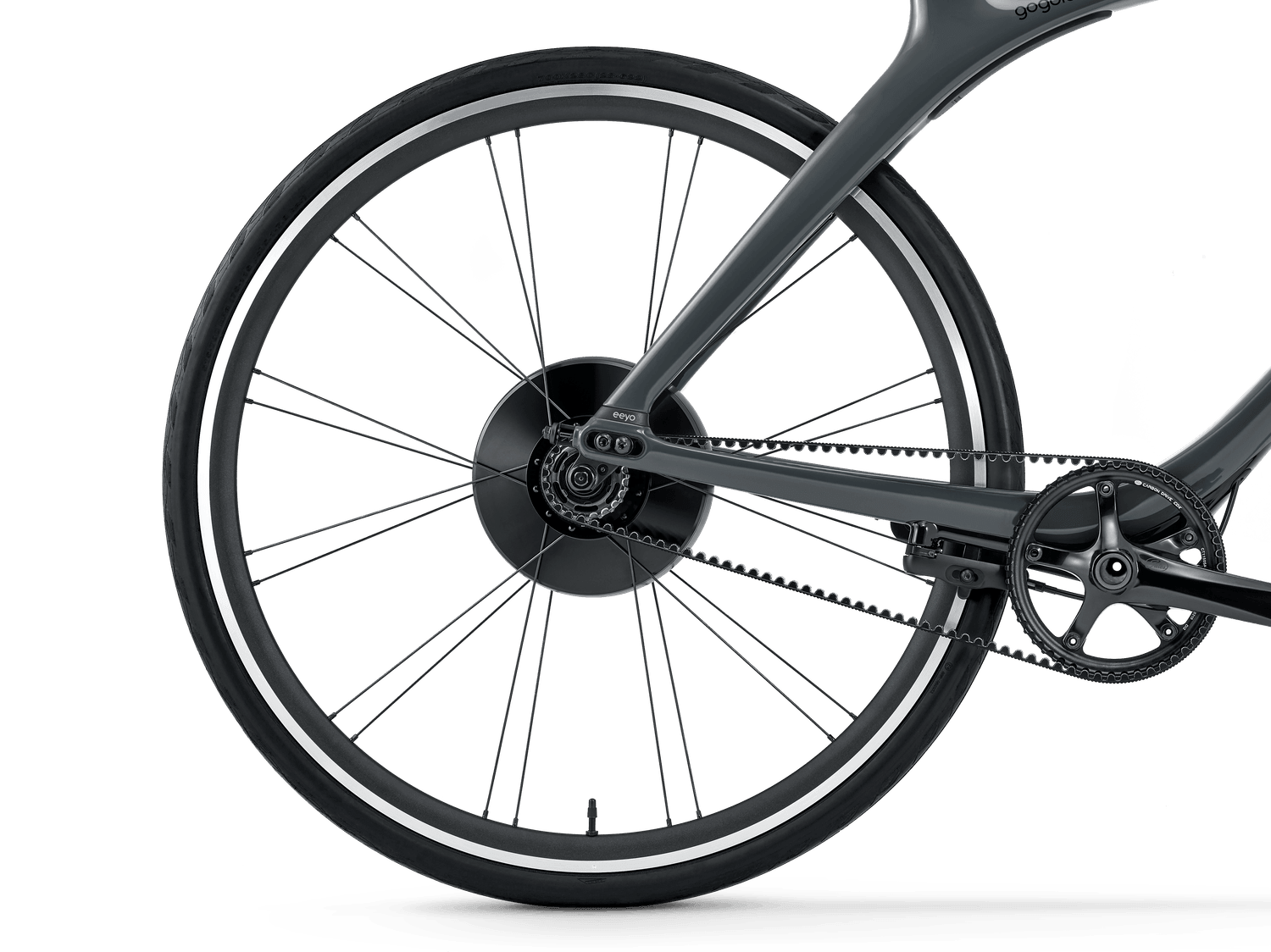

Eeyo Smartwheel
Motor
250 W
Battery
Integrated 123.4 Wh Minimum 500 Charge Cycles
Sensors
Torque, Speed, Temperature
Anti-Theft
Yes
Connectivity
Bluetooth 4.0
Waterproofing
IPX4
Assist Speed
19 Mph in US, 15.5 Mph in UK in accordance with local regulations
Range
40 Miles Sport / 55 Miles Eco
Charger 100 - 240 V AC
Power
49.9 W
Charge Time
100% Recharge In 2.5 Hours
Bike Geometry
A: Head Tube Angle
72º
B: Seat Tube Length
546mm
C: Seat Tube Angle
73º
D: Head Tube Length
181mm
E: Fork Length
376mm
F: Fork Rake
45mm
G: Bottom Braket Drop
75mm
H: Chainstay Length
429mm
I: Standover Height
739mm
J: Wheel Base
1020mm
*Due to the inevitable inaccuracy of manufacturing methods, differences within standard tolerance is possible to all length, weight and other specifications referred to in this website.
